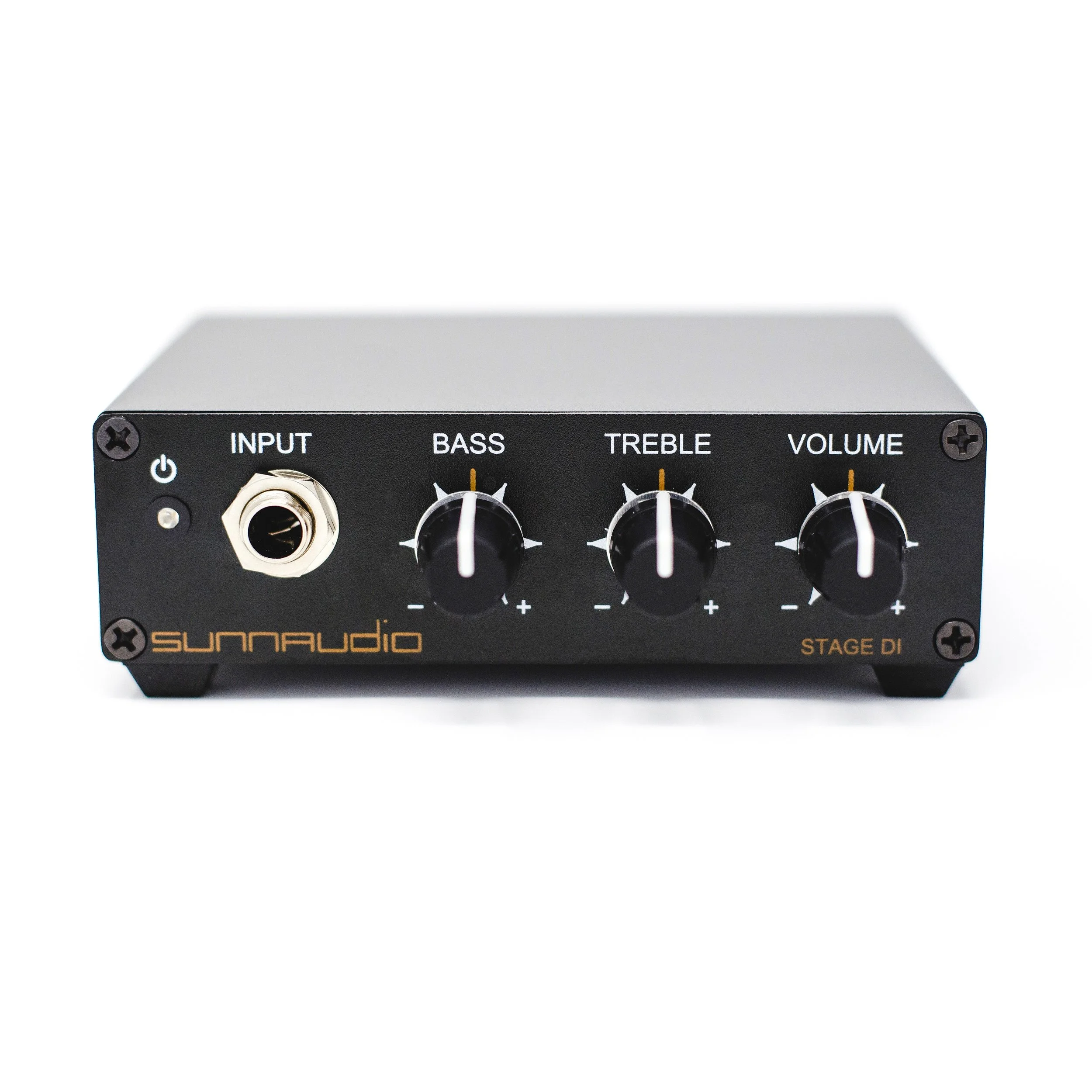

THE Original Stage DI. Proven on many stages and performances across the world with piezo, magnetic and active pickups. Studio grade acoustic Preamp and Direct Box designed for ‘Plug and Play’ to your system, console, mixing board, PA’s, powered monitors or powered speakers.

• Unmatched simplicity with sweet acoustic tone and performance.

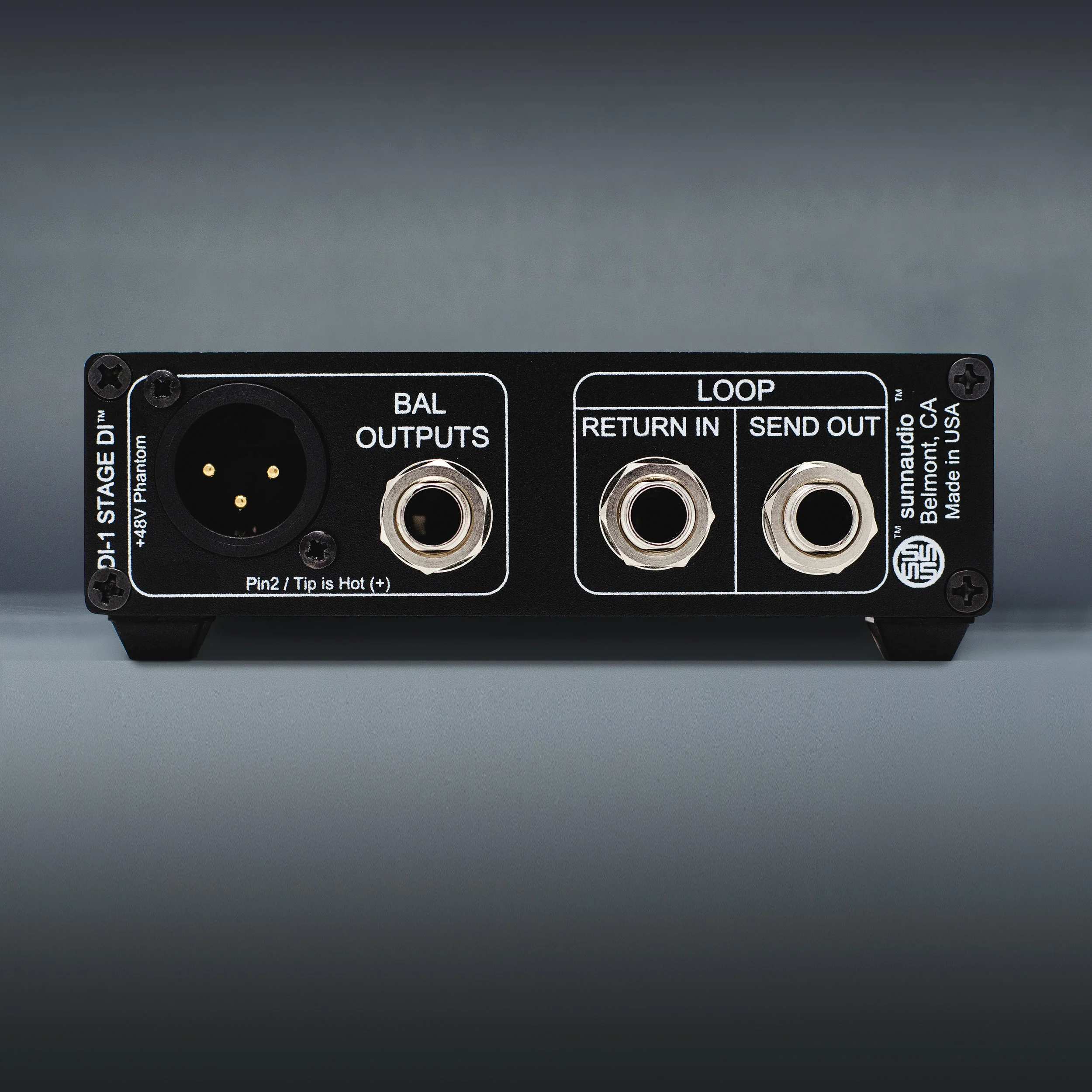

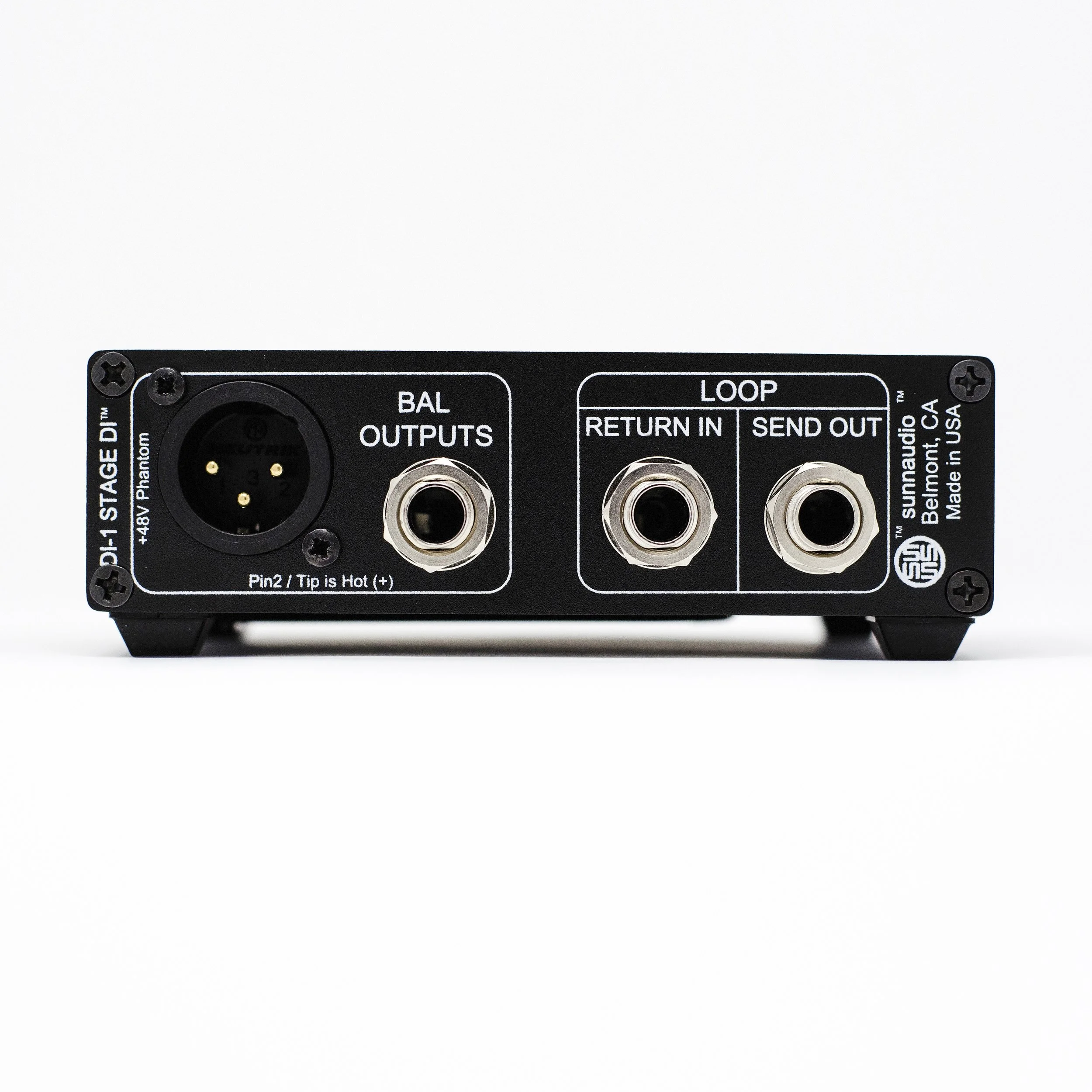

• Effects Loop (separate Send and Return jacks)

• Up to three simultaneous outputs

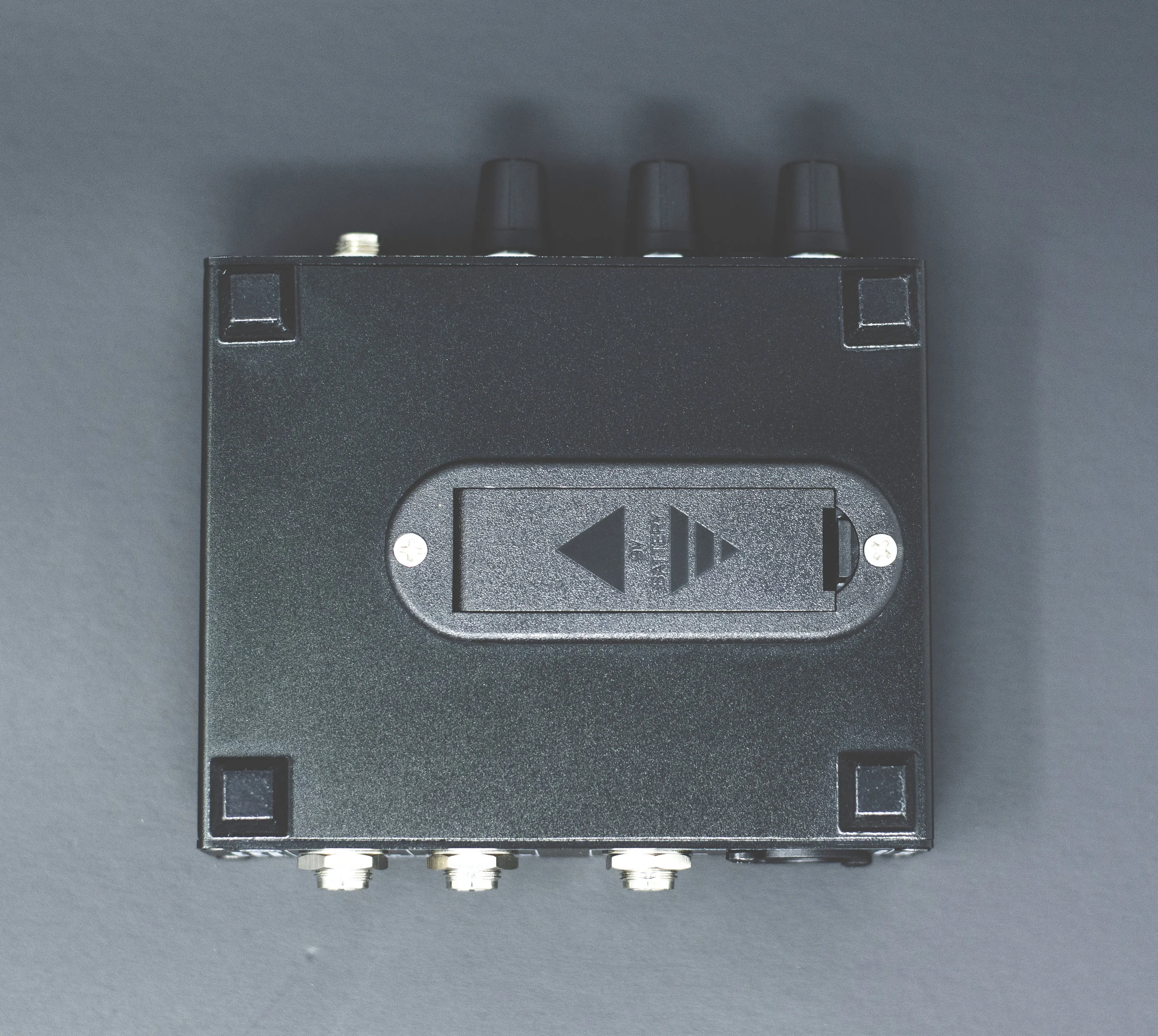

• Powered by a 9 volt battery or phantom powered balanced XLR out, transformer-less, and ultra quiet

• Excellent for live situations and studio use, variable sub-harmonic bass adjustment optimal for adjusting low bass subwoofer frequencies

• Fits in most acoustic guitar case’s storage compartments

• Individually made with hand matched components

• Studio quality and ultra-quiet with 108dB dynamic range**

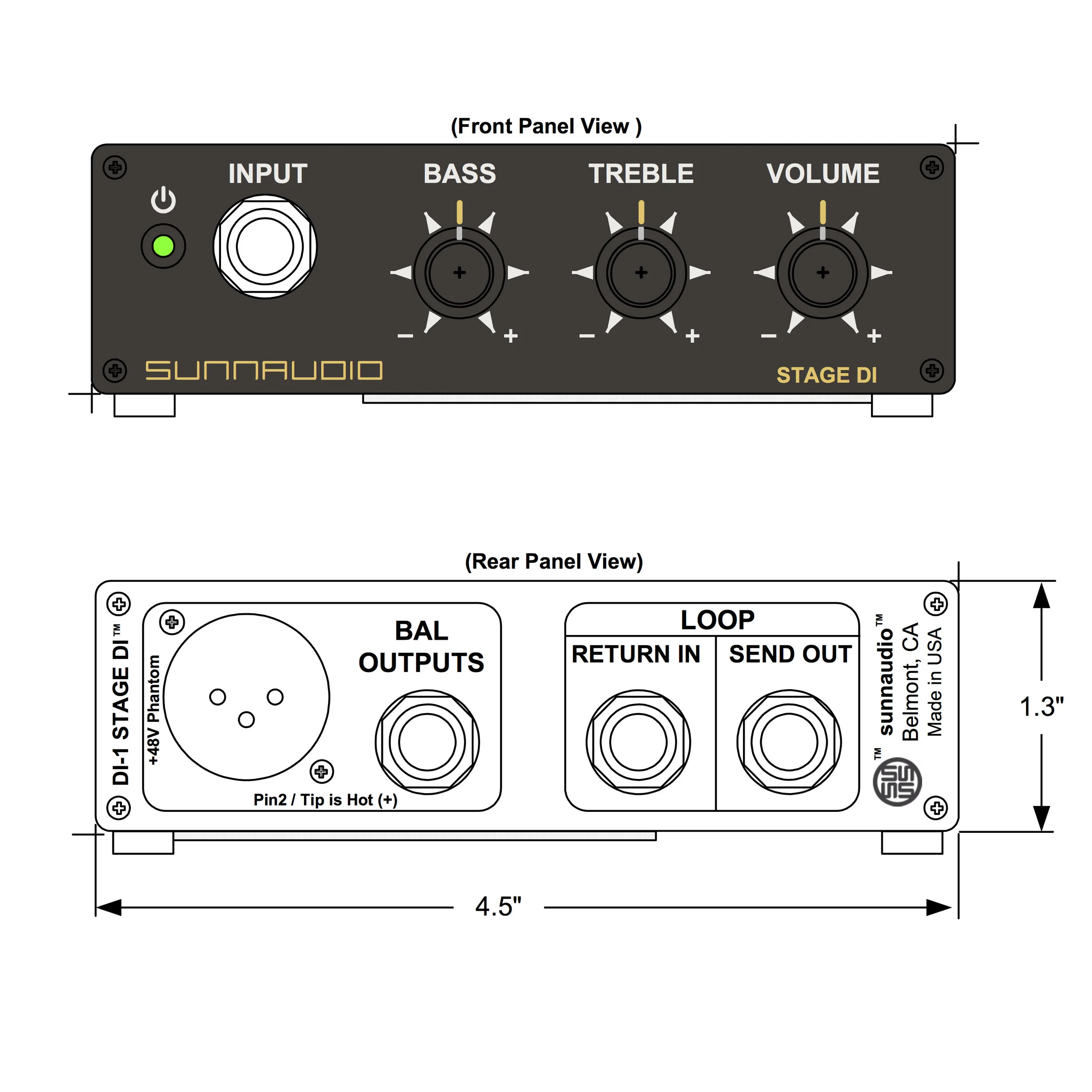

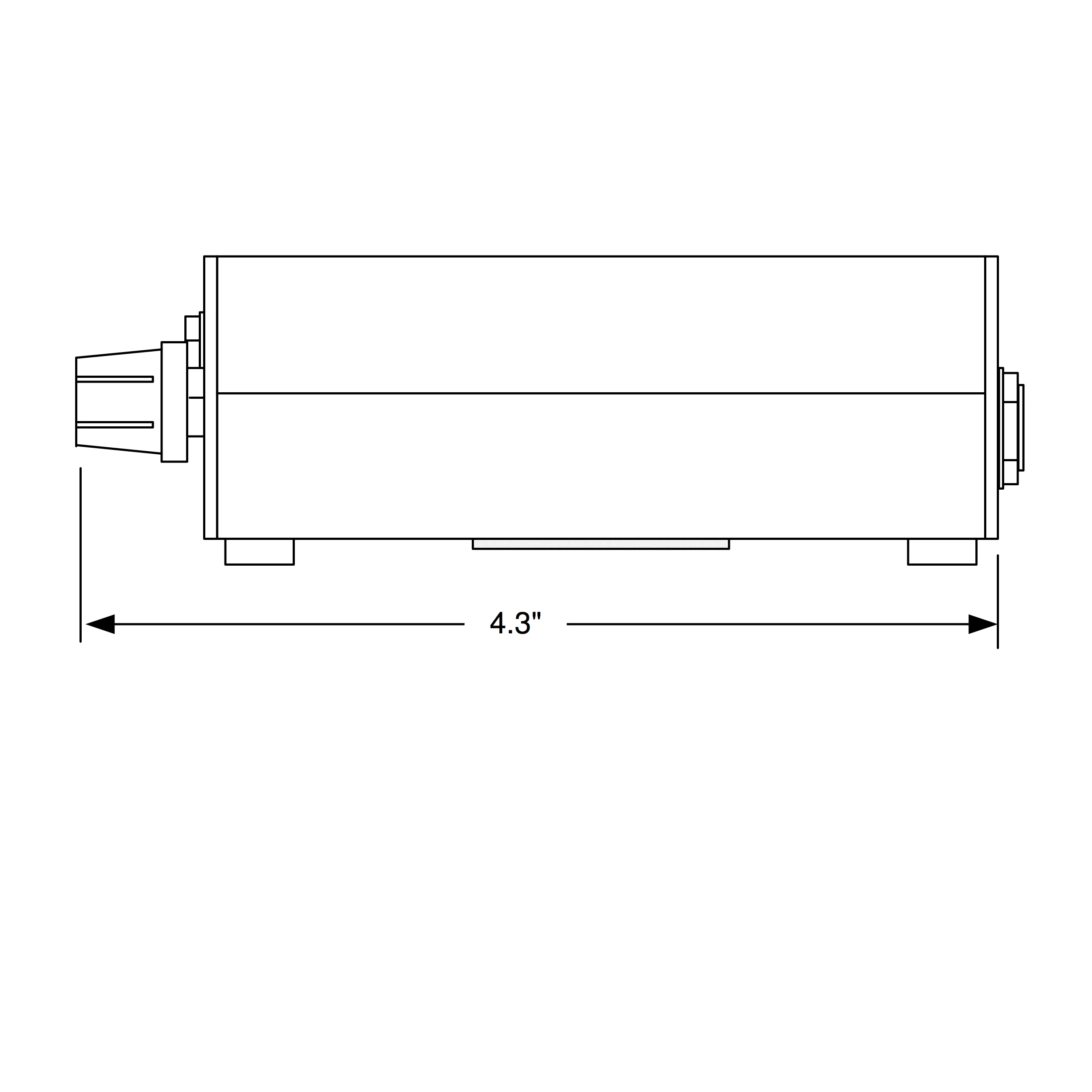

• Size: 4.5 x 4.3 x 1.3 inches (including knobs)

• Weight: 12 oz (340g) without the battery.  A Duracell Quantum 9V will add 1.6 oz (46g) with an expected life of 140hrs

DI-1 Quick Start Guide
